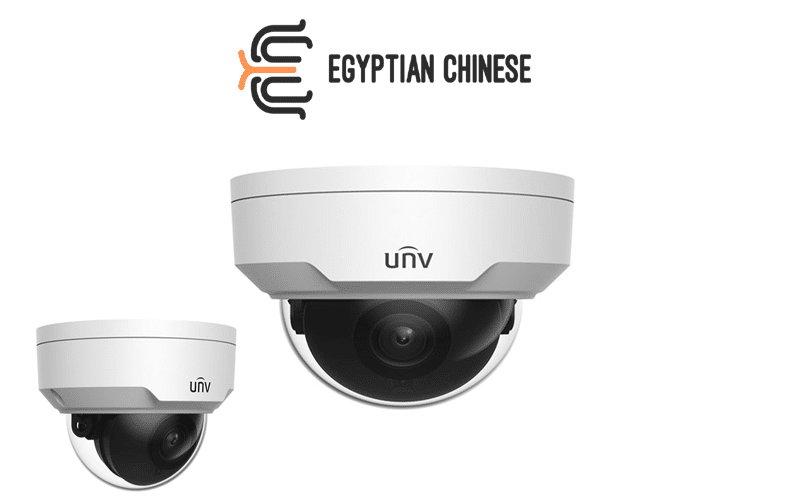

| CAMERA-UNV-IPC323LB-SF28-A1-3MP-Fixed IR Dome |
| Camera |
| Sensor |
1/2.8″, 3.0 megapixel, progressive scan, CMOS |
| Lens |
2.8mm@F2.0 |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 2.8 |
51.4 |
20.6 |
10.3 |
5.1 |
| Angle of view (H) |
109.2° |
| Angle of View (V) |
57.9° |
| Angle of View (O) |
117.8° |
| Adjustment angle |
Pan: 3° ~ 360° |
Tilt: 0° ~ 75° |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination |
Colour: 0.01Lux ( F2.0, AGC ON)
0Lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Digital Noise Reduction |
2D/3D DNR |
| S/N |
>52dB |
| IR Range |
Up to 30m (98ft) IR range |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Defog |
Digital Defog |
| WDR |
DWDR |
| Video |
| Video Compression |
Ultra 265, H.265, H.264 |
| H.264 code profile |
Baseline profile, Main profile, High profile |
| Frame Rate |
Main Stream: 3MP (2304*1296), Max 20fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream: 4CIF (704*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate |
128 Kbps~6144 kbps |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Up to 8 areas |
| Motion Detection |
Up to 4 areas |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction |
2D/3D DNR |
| Smart IR |
Supported |
| Flip |
Normal/Vertical/Horizontal/180° |
| Dewarping |
N/A |
| HLC |
Supported |
| BLC |
Supported |
| Smart |
| Behavior Detection |
motion detection |
| General Function |
Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP , UPnP, HTTP, HTTPS, QoS, SSL |
| Compatible Integration |
API |
| Client |
EZStation
EZView
EZLive |
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ |
| Interface |
| Network |
10/100M Base-TX Ethernet |
| Certifications |
| Certifications |
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15 |
| General |
| Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 5.0W |
| Dimensions (Ø x H) |
Φ109 x 81mm (Ø4.3” x 3.2”) |
| Net Weight |
0.35kg (0.77lb) |
| Material |
Metal + Plastic |
| Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection |
4KV |
| Ingress Protection |
IP67 |
| Vandal Resistant |
IK10 |
| Reset Button |
N/A |
